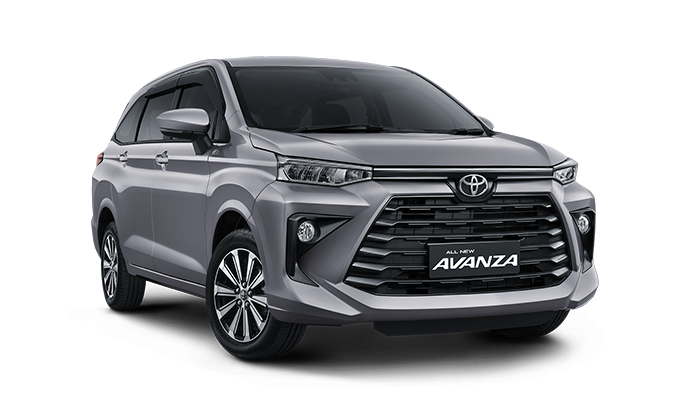

AVANZA 1.3 E

Vehicle Overview

DIMENSI	SASIS	Mesin
Overall Panjang / Length4,395	Transmisi / Transmission Type5 M/T	Seri Mesin / Machine Serial1NR-VE
Overall Lebar / Width1,730	Suspensi Depan / Front SuspensionMacPherson Strut	Tipe Mesin / Engine Type4 Cylinder in-line, 16 Valve DOHC with Dual VVT-i
Overall Tinggi / Height1,665	Suspensi Belakang / Rear SuspensionTorsion-Beam	Diameter X Langkah / Bore X Stroke (Mm)72.5 x 80.5
Jarak Poros Roda / Wheelbase2,750	Rem Depan / Front Brake 15' Disc	Isi Silinder / Displacement (Cc)1,329
Jarak Pijak / Tread (Depan/Front)1,515	Rem Belakang / Rear BrakeDrum	Daya Maksimum / Maximum Output (Ps/Rpm)98/6,000
Jarak Pijak / Tread (Belakang / Rear)1,510	Sistem Rem Tambahan / Additional Brake SystemABS+EBD+BA	Torsi Maksimum / Maximum Torque (Kgm/Rpm)12.4/4,200
Jarak Terendah / Ground Clearance195		Bahan Bakar / FuelSistem Injeksi Bahan Bakar Elektronik / Electronic Fuel Injection
		Kapasitas Tangki / Fuel Capacity (Liter)43
